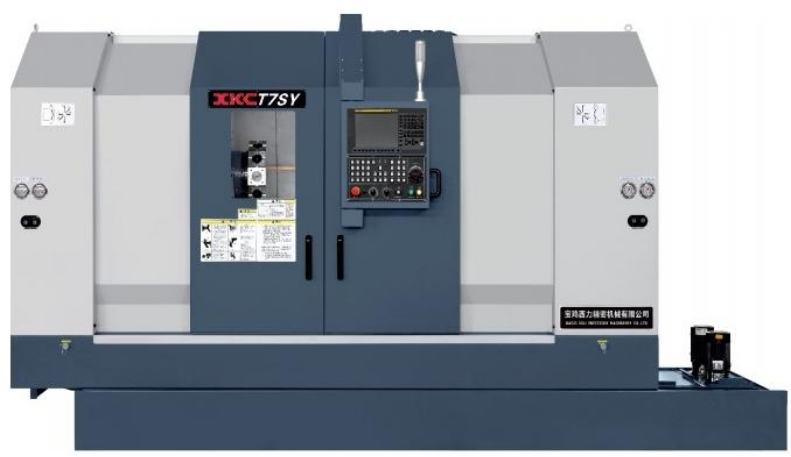

T7SY DOUBLE SPINDLE TURNING AND MILLING CENTER


T7SY

DOUBLE SPINDLE TURNING AND MILLING CENTER

Spindle: Large Through-Hole, High Precision, High Speed, High Stability

This machine adopts the form of double mechanical spindles. After precise dynamic balance correction, it has good rotational accuracy and stability, and strong vibration resistance. The spindle adopts high-speed angular contact ball bearing and cylindrical roller bearing structure, which has good rigidity and a speed of up to 4500r/min.

image.png   image.png

Machine Host: High Rigidity, High Anti Vibration Structure

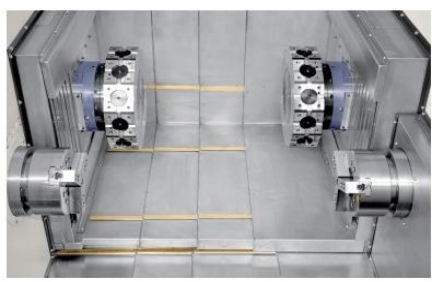

T7SY CNC lathe adopts a dual spindle and dual turret form, with a base ofan integral 30°inclined bed structure and an X/Y/Z dual feed system; Z-axis guide rail with large span design, improving the anti deflection ability of the bed saddle; The integrated design of the bed saddle, skateboard, and screw nut seat reduces the connection links and further enhances the stressand vibration resistance performance of the moving parts; This series of targeted designs endows the machine tool with excellent vibration resistance, accuracy, and long- term stability that farexceed the same level of models on the market.

Tools: Quick Tool Change, Precise Positioning

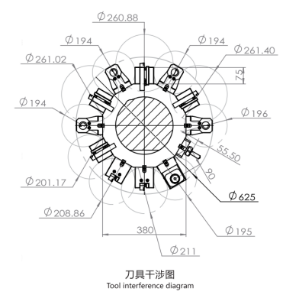

T7SY turning and milling center adopts an orthogonal Y-axis(hard rail),dual twelve stationpower turret, servo indexing, gear disc positioning, fast tool changing speed, accurate positioning, and can complete turning, milling, drilling and tapping of the outerdiameter and both sides of the part with one feeding.

image.png  image.png

Feed: Accurate Positioning And High-Precision Feeding

The X-axis and Z-axis guide rails are made of high-precision linear roller-shaped rolling guides, and the Y-axis is in the form of hard rails, which has good vibration resistance and strong bearing capacity. The three-axis feed shaft adopts high-rigidity ball screws, which provide extremely high screw rigidity while ensuring the feed accuracy.

image.png  image.png

MACHINE SPECIFICATION PARAMETERS

項目ITEM

T7SY標配新代(選配發那科)

Standard SYNTEC (Optional FANUC)

加工能力

Capacity

床身上最大的回轉直徑 Max. swing diaover bed

φ270mm

最大的車削直徑 Max. turning diameter

φ250mm

最大的車削長度 Max. turning length

7 5 0 mm ( 雙 軸 ) ( Two  axes )

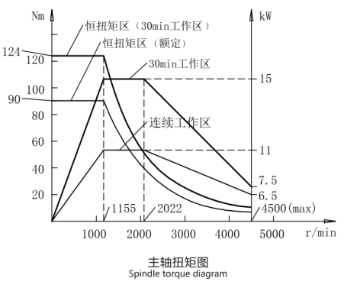

主軸

Spindle

液壓卡盤尺寸 Hydraulic chuck dimensions

8寸   8-inch

主軸頭型式(ISO) Spindle nose

A2-6

主軸轉速 Spindle speed

45-4500r/min

主軸通孔直徑 Spindle borediameter

φ62mm

主軸可通過棒料直徑Through hole diameter

卡盤(Chuck):φ51mm

主電機功率(連續/30分鐘)

Spindle motor (Continuous/30 minutes)

11KW/15kw

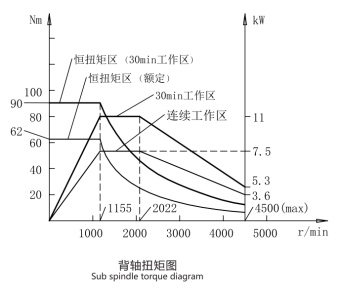

背軸

Sub spindle



液壓卡盤尺寸 Hydraulic chuck dimensions

8寸   8-inch

主軸頭型式(ISO) Spindle nose

A2-6

主軸轉速 Spindle speed

45-4500r/min

主軸通孔直徑 Spindle borediameter

φ62mm

主軸可通過棒料直徑Through hole diameter

卡盤(Chuck):φ51mm

主電機功率(連續/30分鐘)

Spindle motor (Continuous/30 minutes)

7.5KW/11kw



左床鞍

Left

bed saddle



傾斜角度 Slant angle

30°

移動距離 Travel X/Y/Z

220/100/400mm

快速移動速度 Rapid traverse rate X/Y/Z

20/10/24mm

最大進給速度 Maximum feed rate

8000mm/min

滾珠絲杠直徑 Ball screw diameter X/Y/Z

φ32×10/φ32×10/φ40×12mm

進給電機功率 Feed motor power X/Y/Z

標配2.4/1.1/2.4kw(FANUC1.8/1.2/1.8kw)



右床鞍

Right

bed saddle



傾斜角度 Slant angle

30°

移動距離 Travel X/Y/Z

220/100/400mm

快速移動速度 Rapid traverse rate X/Y/Z

20/10/24mm

最大進給速度 Maximum feed rate

8000mm/min

滾珠絲杠直徑 Ball screw diameter X/Y/Z

φ32×10/φ32×10/φ40×12mm

左/右刀塔

left/Right turret

驅動形式 Driving form

伺服動力刀塔  Servo powered turret

刀位數 Number of stations

12

刀具尺寸(車削/鏜孔) Tool size (Turning/and boring)

20×20/φ32mm

冷卻

Cooling

電機功率/揚程 Motor Power/lift

550W/40KW/M

冷卻箱容積  Cooling tank volume

150L

其它

Others

電源容量Required electric Power

25KVA

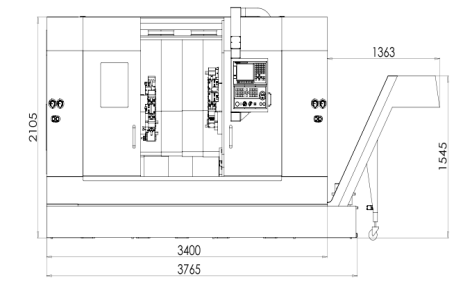

機床尺寸(長×寬×高)Floor Space

3800×2000×2200mm

機床重量 Mass of machine

6500kg about 6500kg
