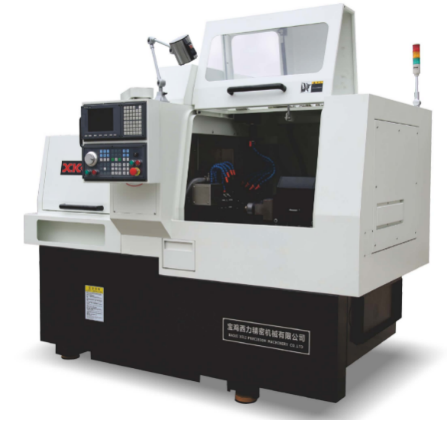

T20B/T32B SERIES PRECISION SUB SPINDLE SWISS TYPELATHE


T20B/T32B

SERIES PRECISION SUB SPINDLE SWISS TYPELATHE

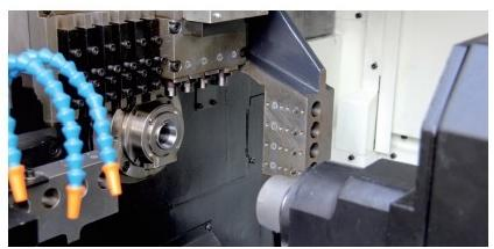

★T32B series sub spindle precision swiss type NC. main spindleand subspindle adopts doublechannel control system, which can realize two-axis processing at the same time. Rest side-by-side withknife type arrangement structure, the uniquehigh  rigiddesign, powerful processing can be realized. This series of machine tool feed length is 320 mm at a time, which can realize parts of the whole length a feed processing.The series lathe with high precision rotary guide bushing, spindle end face of cutting tool, workpiece side driling, tapping, milling flat processing function of power tool, back end face of cutting tool.


★Optional spindle end face deep hole drill, the spindleend facedrilling, tapping, milling slot, eccentric hole processing function of the power tool functions, back axle end face drilling, tapping, milling slot, eccentric hole processing function of the power tool functions, users can according to need a variety of flexible customization tools unction combination.With automatic feeding device, optional long pieces of material, parts of belt conveyor transmission function, to achieve automatic continuous processing and  high precision, batch, complex shape precision compound processing ofshaft parts.

MACHINE SPECIFICATION PARAMETERS

項目ITEM

T20B

T32B









加工能力

Capacity

最大夾持棒料 Max spindle hole diameter

φ3-φ20mm

Φ8-φ32mm

一次送料最大加工長度

A Max processing length

旋轉導套Rotation guide bushing

245mm

320mm

無導套No guide bushing

45mm

70mm

主軸最大鉆孔直徑 Max spindle drilling diameter

φ10mm

φ12mm

主軸最大攻絲直徑 Max spindle tapping diameter

M8

M10

背軸最大夾持直徑 Max sub spindle clamp diameter

φ20mm

Φ32mm

背軸最大鉆孔直徑 Max sub spindle drilling diameter

Φ10mm

Φ12mm

背軸最大攻絲直徑 Maxsub spindle tapping diameter

M8

M10

動力頭最大鉆孔直徑 Max power tool drilling diameter

Φ6mm

Φ8mm

動力頭最大攻絲直徑 Max power tapping diameter

M5

M6

動力頭最大槽銑刀直徑 Max power tool millinggroove diameter

Φ40mm

Φ45mm



主軸

Spindle

中心高度 Center height

1025mm

1030mm

主軸通孔直徑 Max Spindle through hole diameter

φ23mm

Φ36mm

背軸通孔直徑 Max Sub spindle through hole diameter

φ23mm

Φ33mm

主、背軸最高轉速 Max spindleand sub spindle speed

6000r/min

6000r/min

主、背軸功率 Max spindle and sub spindle power

3 KW

4.4 KW





刀具配置

Tool specs





刀具數(shù)量 Number of tool

標配Standard:18把

選配端面動力頭Optional facing power tool:21把units(不含not contain Y2軸axis)

標配Standard:19把

選配端面動力頭Optional facing power tool:

21把units(不含not contain Y2軸axis)

選配Optional Y2軸axis22把units

(不含端面動力頭not contain power tool)

選配Optional Y2軸axis23把units

(不含端面動力頭not contain power tool)

車削刀具 Turning tool

6*φ12*150mm

6*φ16*150mm

端面鉆孔刀具 Facing tool

4*ER16

5*ER16

側向動力刀具 Side power tool

4*ER16

3*ER16+1*ER20

背軸端面鉆孔刀具Sub spindle faceing drilling tool

4*ER16

4*ER20

端面動力刀具(選配)

Faceing power tool (optional)

3*ER16(動力power)

+4*ER16(端面孔face hole)

3*ER16(動力power)

+4*ER20(端面孔face hole)

Y2軸動力刀具(選配)

Y2 axis power tool (optional)

4*ER16(動力power)

+4*ER16(端面孔face hol)

4*ER16(動力power)

+4*ER16(端面孔face hole)

動力刀具最高轉速 Max speed of power tool

5500rpm

5500rpm

動力頭電機功率 Motor power of power tool

0.75Kw

0.75Kw





行程/進給

Travel/Axes





控制軸數(shù)

Numberof axis

標配 X1、Y1、Z1、X2、Z2Standard

5軸axis

5軸axis

選配Optional X1、Y1、Z1、X2、Y2、Z2     Y2軸axis

6軸axis

6軸axis

快移速度

Rapid move speed

X1軸axis、YI軸axis、Z1軸axis、

X2軸axis、Z2軸axis、Y2軸axis

15m/min

18m/min

15m/min

18m/min

電機功率 Motor power (X1、Y1、Z1、X2、Y2、Z2)

0.75KW

0.75KW

其它

Others

機床尺寸(長×寬×高) Floor Space

2100*1185*1781mm

2260*1490*1860mm

機床重量 Mass of machine

3050kg about 3050kg

3150kg about 3150kg
