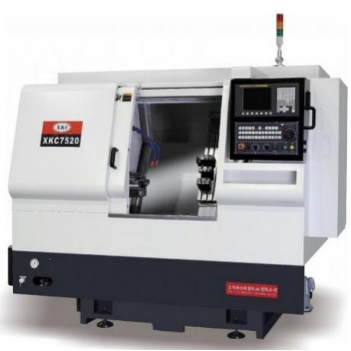

752OA
SLANT-BED PERCISION CNC LATHE
High Precision Spindle
The cartridge type spindleof lathe is supported by Japan super precision bearings. Spindle runout is less than <3μm.
High Efficiency Machining
Max. Speed of spindle is 5500rev/min. Rapid traverse rate of X and Z axes is up to 20m/min. Auto parts feeder can be equip ped to fulfill fast and efficient automation production.
Machine Bed Construction
High rigidity meehanite cast iron 60°slant bed, easy chip removal, compact design, beautiful appearance.
Accurate Feeding
Each feeding axis isdriven by servomotors through Japan NSK or THK precision ball screws. Machining accuracy isensured and longtime accuracy is remained. Repeatability is less than<±1μm.
Comb type tool rest
The unique design of comb type tool rest gives mini mumrepeatability error during tool change. It is fast, precise and considerably timesaving.
Extra heavy cutting
Hydraulic rotary cylinder with high speed and high accuracy combined with rigid and precise power chuck increase greatly heavy cutting and tough metal cutting capacity.
Control System
Driven by FANUC control systems that enable the lathes with great stability.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | 7520A | |
加工能力 Capacity | 最大回轉直徑 Max swing diameter | φ400mm |
刀座板上面最大的回轉直徑 Swing over cross slide | Φ90mm | |
最大加工直徑 Max. turning diameter | φ360mm | |
最大加工長度 Max. turning length | 200mm | |
主軸 Spindle | 最高回轉速度 Max spindle speed | 5500r/min |
主軸通孔直徑 Spindlebore dia | φ57mm | |
主軸可通過棒料直徑 Through hole diameter | 筒夾(Collet chuck): φ42mm 卡盤(Chuck): φ45mm | |
主電機 Main motor A/C | CTB 7.5KW/FANUC 5.5/7.5KW | |
刀架 Turret | 刀位數 Number of stations | 7 |
刀具尺寸(車刀/鏜孔刀) Tool size | 20×20 φ25mm | |
行程/進給 Travel/Axes
| X軸移動量 X-axis travel | 360mm |
Z軸移動量 Z-axis travel | 400mm | |
X/Z軸最大快移速度 Rapid feed X/Z | 20m/min | |
X/Z進給電機 Feed motors | 伺服1.2KW | |
C軸(僅7520C) | 最小控制角度 Min. control angle | 0.001°(Bzi編碼器) |
其它 Others | 總電氣容量 Required electric power | 12 kVA |
筒夾 Collet chuck | 5" | |
中空液壓缸 Rotating hydraulic cylinder | 6" | |
機床尺寸(長×寬×高) Floor Space | 2360*1569*1810mm | |
機床重量 Mass of machine | 約 2800kg about 2800kg | |
